Cowl & Front Cover for Mercury / Mariner (175 HP V-6 (1976-1988 Combined Books)) Engine

Start Over Different Model > Different Engine Section > Cowl and Front Cover

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

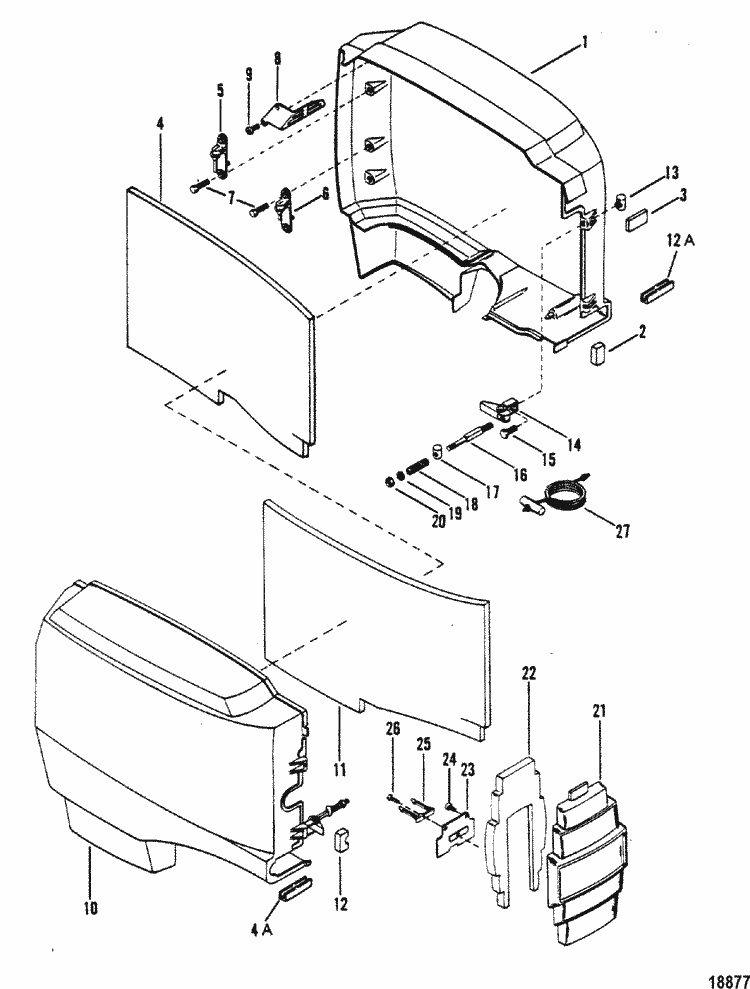

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1/10 — 6608A13 — PORT/STBD. COWL (1 required per assembly) — (Black) SN# 4838073 & Below
		2151-6608A13 - COWL KIT,NLA [ More info ] Unavailable
#1 — 7620A 4 — COWL ASSEMBLY, Port (9 required per assembly) — (Black) SN# 4838074 & Up
		2151-7620A 4 - COWL,NLA [ More info ] Unavailable
#1 — 7620A22 — COWL ASSEMBLY, Port (1 required per assembly) — (Gray)
		2151-7620A22 - COWL ASSY,NLA [ More info ] Unavailable
#1 — 9447A18 — COWL ASSEMBLY, Port (1 required per assembly) — (Oyster)
		2151-9447A18 - PORT COWL,NLA [ More info ] Unavailable
#2 — 67260 — SEAL (1 required per assembly)
		67260 - Seal, NLA [ More info ] $12.99 $11.00 10+ In Stock.
#3 — 67258 — PAD (1 required per assembly)
		67258 - Pad, Cowl to Front Cover, NLA [ More info ] $2.41 $2.05 2 In Stock.
#5 — 87987 1 — BRACKET, UPPER (2 required per assembly)
		87987 1 - Bracket [ More info ] Unavailable
#6 — 87985 1 — BRACKET, LOWER (2 required per assembly)
		31-87985 1 - Bracket [ More info ] $30.79 $26.07 6 In Stock.
#7 — 37562 — SCREW, (.312-18 x 1.00) (8 required per assembly)
		10-37562 - Screw - Priced Individually [ More info ] Unavailable
#8 — 68049 — SHIELD (1 required per assembly) — (STARBOARD)(BLACK & GRAY)
		68049 - Shield, NLA [ More info ] $4.89 $4.14 2 In Stock.
#8 — 68048 — SHIELD (1 required per assembly) — (PORT)(BLACK & GRAY)
		68048 - Shield, NLA [ More info ] Unavailable
#8 — 68049 1 — SHIELD (1 required per assembly) — (STARBOARD)(OYSTER)
		68049 1 - INLET SHIELD STB,NLA [ More info ] Unavailable
#8 — 68048 1 — SHIELD (1 required per assembly) — (PORT)(OYSTER)
		68048 1 - INLET SHIELD POR,NLA [ More info ] Unavailable
#9 — 48409 — SCREW, (#10-16 x .625) (4 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 6 In Stock.
#9 — 57807 — SCREW, (#10-16 x .750) (4 required per assembly)
		10-57807 - Screw - Priced Individually [ More info ] $7.39 $5.92 3 In Stock.
#9 — 35519 — SCREW, (#10-16 X .50) (4 required per assembly)
		10-35519 - Screw, NLA [ More info ] $1.80 $1.52 10+ In Stock.
#10 — 7619A 1 — COWL ASSEMBLY, Starboard (1 required per assembly) — (Black)
		2150-7619A 1 - COWL,NLA [ More info ] Unavailable
#10 — 7619A 5 — COWL ASSEMBLY, Starboard (1 required per assembly) — (Gray)
		2150-7619A 5 - COWL ASSY,NLA [ More info ] Unavailable
#10 — 9452A 3 — COWL ASSEMBLY, Starboard (1 required per assembly) — (Oyster)
		2150-9452A 3 - STARBOARD COWL,NLA [ More info ] Unavailable
#11 — 88227 — BLANKET (1 required per assembly)
		88227 - Sound Blanket,NLA [ More info ] Unavailable
#12 — 67257 — SEAL (1 required per assembly)
		67257 - Seal [ More info ] Unavailable
		99444 - SEAL,NLA [ More info ] Unavailable
#12A — 19368 1 — SEAL, (3.20 Inch) (1 required per assembly) — (Oyster)
		19368 1 - Seal -channel, NLA [ More info ] $1.39 $1.17 10+ In Stock.
#13 — 62628 — BARREL (2 required per assembly)
		62628 - Cowl Latch Barrel [ More info ] Unavailable
#14 — 46785A 5 — COWL LATCH ASSEMBLY (2 required per assembly)
		46785A 5 - Latch Assembly, NLA [ More info ] Unavailable
#15 — 31312 — SCREW, (#10-32 x 0.875) (2 required per assembly)
		10-31312 - Screw, NLA [ More info ] $2.77 $2.34 10+ In Stock.
#16 — 15222 — BAR (2 required per assembly)
		15222 - Cowl Latch Adjusting Bar, NLA [ More info ] $24.14 $20.45 10+ In Stock.
#17 — 62629 — BARREL (2 required per assembly)
		62629 - Cowl Latch Barrel [ More info ] $19.99 $16.92 10+ In Stock.
#18 — 62624 — SPRING (2 required per assembly)
		24-62624 - Spring, Cowl Latch,NLA [ More info ] $13.27 $11.24 8 In Stock.
#19 — 30164 — WASHER, (.192 x .375 x .0312) (2 required per assembly)
		12-30164 - Washer, (.192 X .375 X .0312) [ More info ] $2.49 10+ In Stock.
#20 — 45812 — NUT, (#10-32) (2 required per assembly)
		11-45812 - Nut, (#10-32) [ More info ] $4.43 10+ In Stock.
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#21 — 5399A 3 — FRONT COVER (1 required per assembly) — (Black)(Use With Ref. #23)
		2149-5399A 3 - Cowl Front Cover, NLA [ More info ] Unavailable
#21 — 5399A16 — FRONT COVER (1 required per assembly) — (Gray)(Use With Ref. #23)
		2149-5399A16 - COWL FRONT Cover, NLA [ More info ] Unavailable
#21 — 7532A 2 — COWL FRONT COVER ASSEMBLY (1 required per assembly) — (Black)(Use WithOut Ref. #23)
		2149-7532A 2 - Cowl Front Cover, NLA [ More info ] Unavailable
#21 — 7532A23 — COWL FRONT COVER ASSEMBLY (1 required per assembly) — (Gray)(Use WithOut Ref. #23)
		2149-7532A23 - COWL FRONT Cover, NLA [ More info ] Unavailable
#21 — 7532A32 — COWL FRONT COVER ASSEMBLY (1 required per assembly) — (Oyster)(Use WithOut Ref. #23)
		2149-7532A32 - FRONT COVER [ More info ] Unavailable
#22 — 67615 — BLANKET (1 required per assembly)
		67615 - Blanket, NLA [ More info ] Unavailable
#23 — 67261 — SHIELD (1 required per assembly) — (Use With Ref. #23)
		67261 - Shield, NLA [ More info ] Unavailable
#25 — 61158T — HOOK (1 required per assembly) — (Use With Ref. #23)
		61158T - Hook, NLA [ More info ] $9.59 $8.12 4 In Stock.
#25 — 87907 — HOOK (1 required per assembly) — (Use WithOut Ref. #23)
		87907 - Cowl Front Cover Hook, NLA [ More info ] $19.99 4 In Stock.
#26 — 75162 — SCREW (1 required per assembly) — (Use With Ref. #23)
		10-75162 - Screw,NLA [ More info ] Unavailable
#26 — 70332 — SCREW, (#10-16 x .500) (1 required per assembly) — (Use WithOut Ref. #23)
		10-70332 - Screw [ More info ] Unavailable
		10-95700 - Screw [ More info ] $6.63 $1.60 10+ In Stock.
#27 — 47341A 1 — EMERGENCY STARTER ROPE (MANUAL STARTING) (1 required per assembly)
		47341A 1 - Rope And Handle [ More info ] Unavailable
		47341A11 - Manual Start Rope And Handle [ More info ] $18.60 1 In Stock.
